Mapping
Mapping is where you build, shape, and texture playable spaces in the editor. This section covers the mapping workflow, toolset, and setup needed to start creating levels quickly.
Mapping is where you build, shape, and texture playable spaces in the editor. This section covers the mapping workflow, toolset, and setup needed to start creating levels quickly.
This section covers Scene Mapping in the s&box editor. It is not a guide for creating Hammer maps.
Entering mapping mode

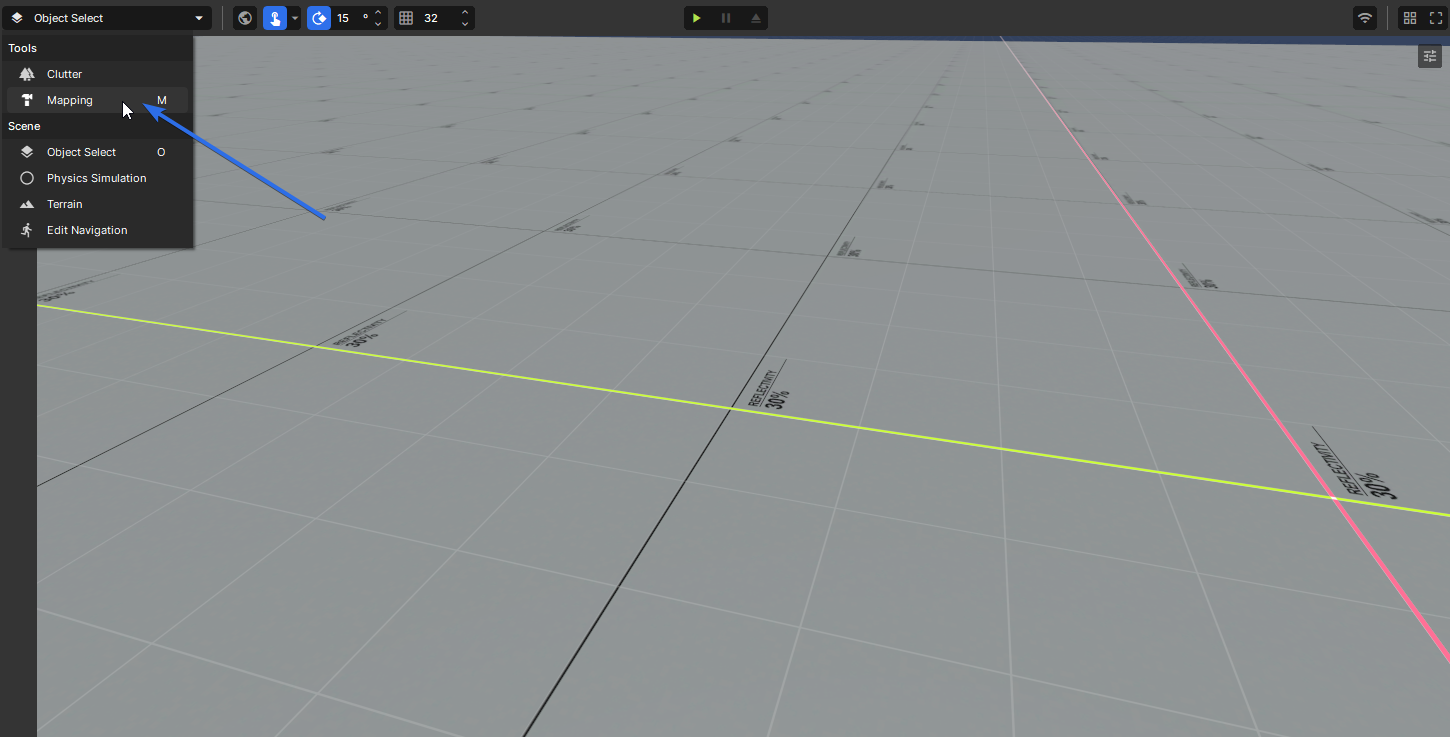

In the top-left of the scene view is a mode dropdown. Click it and select Mapping, or simply press M.
Tools overview

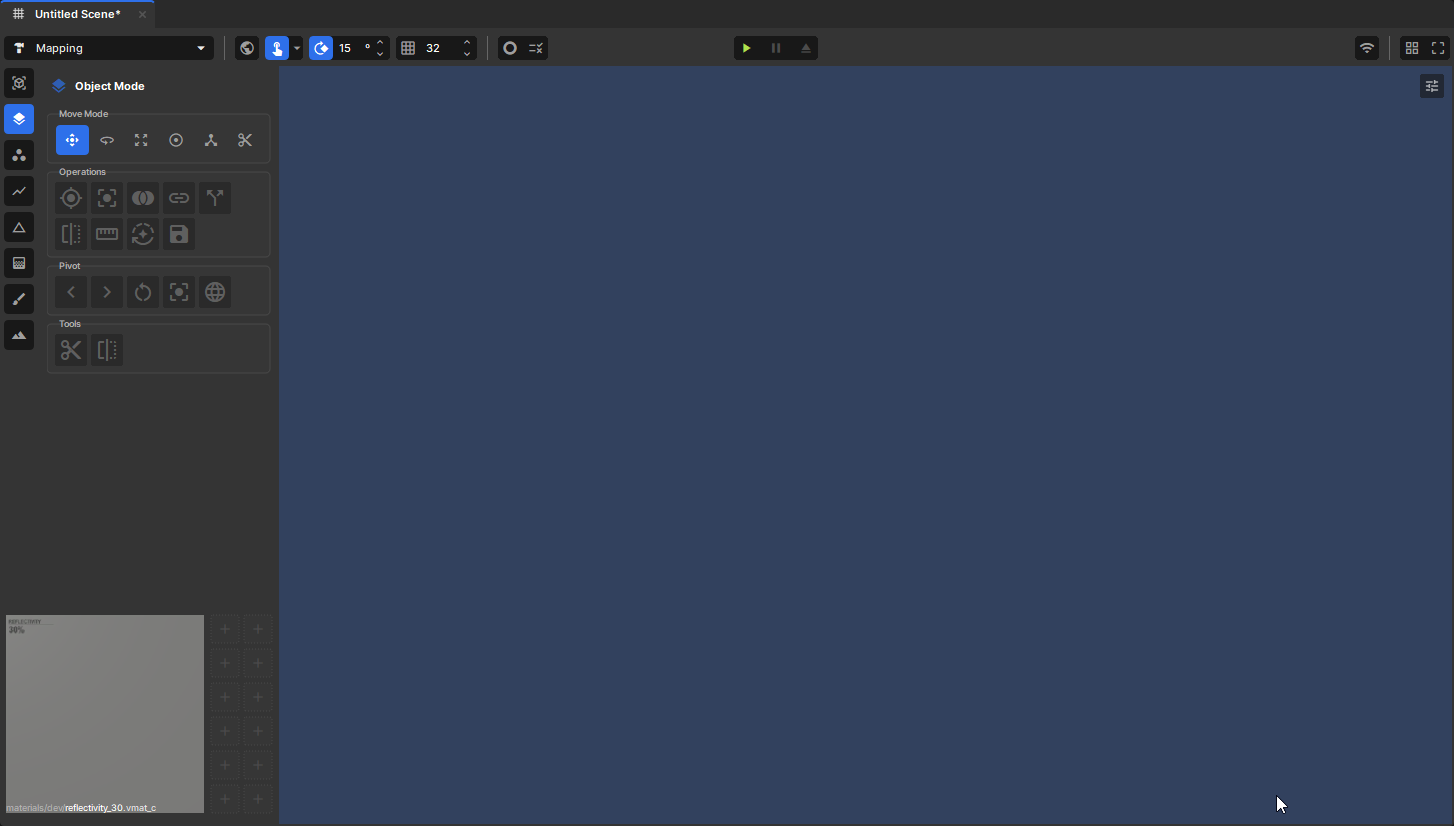

The toolbar is the hub for all mapping functions. From here you can create meshes, edit their geometry, texture surfaces and paint vertex colours. Everything you need to go from a blank scene to a finished level is accessible directly from this toolbar.
Many shortcuts in the mapping editor intentionally match Hammer, so if you have a background in Source engine mapping you should feel right at home. See the Shortcuts page for a full reference.
Tool modes
Each tool in the toolbar serves a specific purpose in the mapping workflow. The tools below are listed in the order they appear in the toolbar, top to bottom.
| Tool | Shortcut | Description |
|---|---|---|
| Primitive Tool | Shift + B | Creates different types of primitives (box, sphere, cylinder, etc.) |
| Object Mode | 5 | Select and transform objects |
| Vertex Tool | 1 | Select and edit vertices |
| Edge Tool | 2 | Select and edit edges |
| Face Tool | 3 | Select and edit faces |
| Texture Tool | 4 | Apply materials to faces and adjust texture alignment, scale, and rotation |
| Vertex Paint | 6 | Paint colour or blends directly onto mesh vertices |
| Displacement | Sculpt and displace vertices to create organic shapes |
Move modes
Once you have a selection, move modes control how you transform it. They are available across all mesh editing tools and switch the active gizmo to the corresponding transform. The modes below are listed in the order they appear in the toolbar, left to right.
| Mode | Shortcut | Description |
|---|---|---|
| Position | W | Move the selection along one or more axes |
| Rotate | E | Rotate the selection around a pivot point |
| Scale | R | Scale the selection uniformly or per-axis |
| Resize | Y | Resize the selection by pushing faces outward from a centre point |
| Pivot | T | Reposition the pivot point used by other move modes |
| Shear | Shear the selection, skewing it along an axis |
Next steps
- Building maps for a specific game? Follow Games.
- Ready to share your work? Follow Publish.
- Need keybinds while working? Keep Shortcuts open.
